SenSmart Multi-Sensing 8330AA

Availability: In Stock

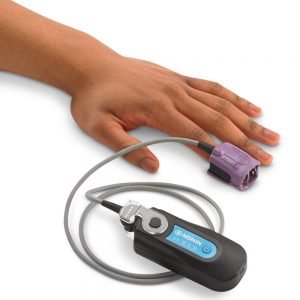

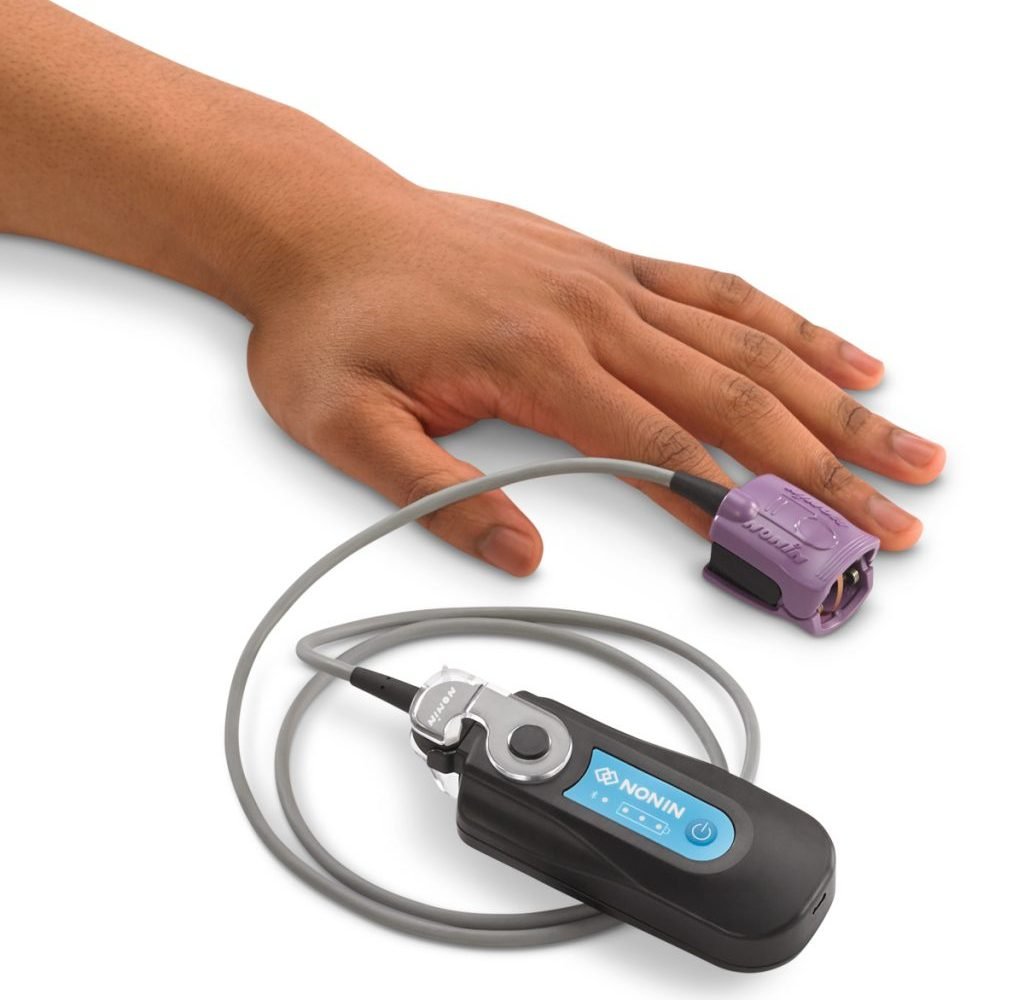

Multi-Parameter Finger Clip Sensor

Nonin Medical’s SenSmart® Multi-Sensing 8330AA sensor is a multi-parameter sensor designed and field-tested to provide fast, robust patient readings including pulse oximetry (SpO2), pulse rate, carboxyhemoglobin (COHb) and methemoglobin (MetHb). Powered by Nonin PureSAT® oximetry technology, the 8330AA sensor is able to use simultaneous SpO2, COHb, and MetHb measurements to result in the most accurate readings, regardless of patient comorbidities. That means reliable accuracy when dealing with sick patients. The SenSmart 8330AA sensor is compatible with the Nonin CO-Pilot™ and Nonin 3500SP.

Category:

Overall Accuracy:

Accuracy (Arms) is expected to encompass approximately 68% of measured values and 95% Limits of Agreement are expected to encompass approximately 95% of measured values.



Description SaO2 Range MetHb or COHb Range Clinical Accuracy Expected Accuracy/95% Limits of Agreement
%SpO2 accuracy with COHb 70 – 100% 0 – 3% COHb ± 2 (-2.6, 3.2)
%SpO2 accuracy with COHb 80 – 100% 0 – 15% COHb ± 2 (-2.3, 2.9)
%SpO2 accuracy with MetHb 70 – 100% 0 – 2% MetHb ± 2 (-2.3, 3.7)
%SpO2 accuracy with MetHb 80 – 100% 0 – 15% MetHb ± 2 (-3.0, 3.8)
%COHb accuracy with elevated HHb 95 – 100% 0 – 15% COHb ± 3 (-5.2, 4.3)
%COHb accuracy with elevated HHb 80 – 100% 0 – 15% COHb ± 3 (-5.5, 4.5)
%MetHb accuracy 97 – 100% 0 – 15% MetHb ± 1 (-1.5, 1.7)
%MetHb accuracy with elevated HHb 80 – 100% 0 – 15% MetHb ± 1 (-1.7, 2.1)



Observed Clinical Study Accuracy

The tables below show Arms values measured using the Model 8330AA in a clinical study of healthy volunteer subjects.

%SpO2 Clinical Accuracy (Arms)1,2:

SaO2 Range COHb Range Oxygen Saturation (Figure A)
70 – 100% 0 – 3% ± 2
70 – 80% 0 – 3% ± 2
80 – 90% 0 – 3% ± 3
90 – 100% 0 – 3% ± 2
SaO2 Range COHb Range Oxygen Saturation with COHb (Figure B)
80 – 100% 0 – 15% ± 2
80 – 90% 0 – 15% ± 3
90 – 100% 0 – 15% ± 2
SaO2 Range MetHb Range Oxygen Saturation (Figure C)
70 – 100% 0 – 2% ± 2
70 – 80% 0 – 2% ± 2
80 – 90% 0 – 2% ± 2
90 – 100% 0 – 2% ± 2
SaO2 Range MetHb Range Oxygen Saturation with MetHb (Figure D)
80 – 100% 0 – 15% ± 2
80 – 90% 0 – 15% ± 3
90 – 100% 0 – 15% ± 2

%COHb Accuracy (Arms):

SaO2 Range COHb Range %COHb Accuracy (Figure E)
95 – 100% 0 – 15% ± 3
95 – 100% 0 – 5% ± 2
95 – 100% 5 – 10% ± 3
95 – 100% 10 – 15% ± 3
SaO2 Range COHb Range %COHb Accuracy with Elevated HHb (Figure F)
80 – 100% 0 – 15% ± 3
80 – 100% 0 – 5% ± 3
80 – 100% 5 – 10% ± 3
80 – 100% 10 – 15% ± 3

%MetHb Accuracy (Arms):

SaO2 Range MetHb Range %MetHb Accuracy (Figure G)
97 – 100% 0 – 15% ± 1
97 – 100% 0 – 5% ± 1
97 – 100% 5 – 10% ± 1
97 – 100% 10 – 15% ± 1
SaO2 Range MetHb Range %MetHb Accuracy with Elevated HHb (Figure H)
80 – 100% 0 – 15% ± 1
80 – 100% 0 – 5% ± 1
80 – 100% 5 – 10% ± 1
80 – 100% 10 – 15% ± 1

Pulse Rate Accuracy: 40 – 250 BPM ±3 digits (Arms):

Temperature:
Operating: -10 °C to 40 °C (14 to 104 °F)
Transient Operating: -20 °C to 50 °C (-4 to 122 °F)
Storage/Transportation: -40 °C to 70 °C (-40 to 158 °F)

Humidity:
Operating: 15% to 93% non-condensing
Transient Operating: 15% to 90% non-condensing
Storage/Transportation: Up to 93% non-condensing

Operating Altitude: 0 to 4,000 meters (0 to 13,123 feet)

Measurement Wavelengths and Output Power
Wavelength range: 600 to 910 nanometers
Output range: 1.5 to 18 mW

Compliance
This product complies with ISO 10993-1.
Not made with natural rubber latex.

Warranty
For warranty information refer to: https://www.nonin.com/warranty/
