Lung monitor

Availability: In Stock

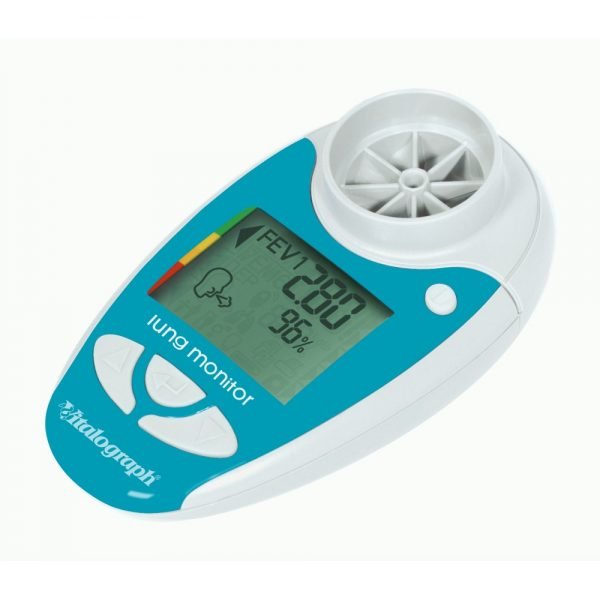

Vitalograph lung monitor is a easy to use home monitoring device which records lung function parameters

Easy to use device for monitoring of lung function parameters for those with respiratory conditions including cystic fibrosis and transplant patients. The lung monitor measures FEV1, FEV6 & the ratio with electronic and hard copy reports. The device is simple to use and stores over 200 test sessions.

Category:

Descriptions

  • For simple, accurate lung function monitoring at home
  • Measures FEV1, FEV6 and the ratio
  • Displays % of personal best FEV1
  • Large, easy to read display
  • Electronic record – no need for record cards
  • Automatically stores best values in a test session
  • Quality of blow indicator
  • Suitable for multi-subject use in clinic with Vitalograph Bacterial Viral Filters (eco BVF)
  • Uses long life AAA batteries
  • Language independent
  • Meets ATS/ERS:2005 Spirometry Guidelines

Specification

Product Vitalograph lung monitor
Model Number 4000
Part Number 40500, 40400, 40750, 40950
Description Vitalograph lung monitor, Vitalograph lung monitor usb, Vitalograph lung monitor bluetooth, Vitalograph lung monitor serial
Parameters Displayed FEV1, FEV6 , FEV1/FEV6 ratio and FEF
Memory FEV1, FEV6 , FEV1/FEV6 ratio and FEF
Quality of Blow Indicator Yes
Accuracy Better than +/- 3%
Range 0 – 9.99 L BTPS
Sensor Stator rotor
Flow Impedance Better than 0.15 kPa/L/s at 14 L/s
Power Supply AAA batteries
Display Custom liquid crystal display
Size 113 x 63 x 48mm
Weight 55g net
Performance standards ISO 26782:2009
ISO 23747:2007
ATS/ERS Guidelines 2005
Operating Temperature Range 17 – 37°C
Management Zones Factory set 3 zones
Green/Yellow threshold 95%
Yellow/Red threshold 90%
Zones may be changed by the user And number of zones increased to 4
Safety Standards IEC 60601-1:2005
Medical Safety Standard Medical Devices Directive 93/42/EEC
Designed and manufactured to following QA/GMP standards ISO 13485:2003
FDA 21CFR820
CMDR

Ordering

40550 Lung monitor
20242 2024 SafeTway Mouthpieces
20980 2024 Mini SafeTway Mouthpieces
20303 2030 Disposable NoseClips
