Availability: In Stock

Detecto’s in-bed scales feature flame-retardant, antibacterial 6 ft (1.8 m) long stretchers which are placed underneath the patient and hydraulically lifted inches from the bed for weighing. They feature locking casters, adjustable weighing arm, and steel construction. The ZERO key allows staff to easily subtract the weight of bedding for accurate patient measurement. Six AA alkaline batteries (not included) or optional AC adapter. Not for transport. EMR/EHR ready. 500 lb x 0.1 lb / 225 kg x 0.1 kg capacity.



Capacity: 500 lb x 0.1 lb / 225 kg x 0.1 kg

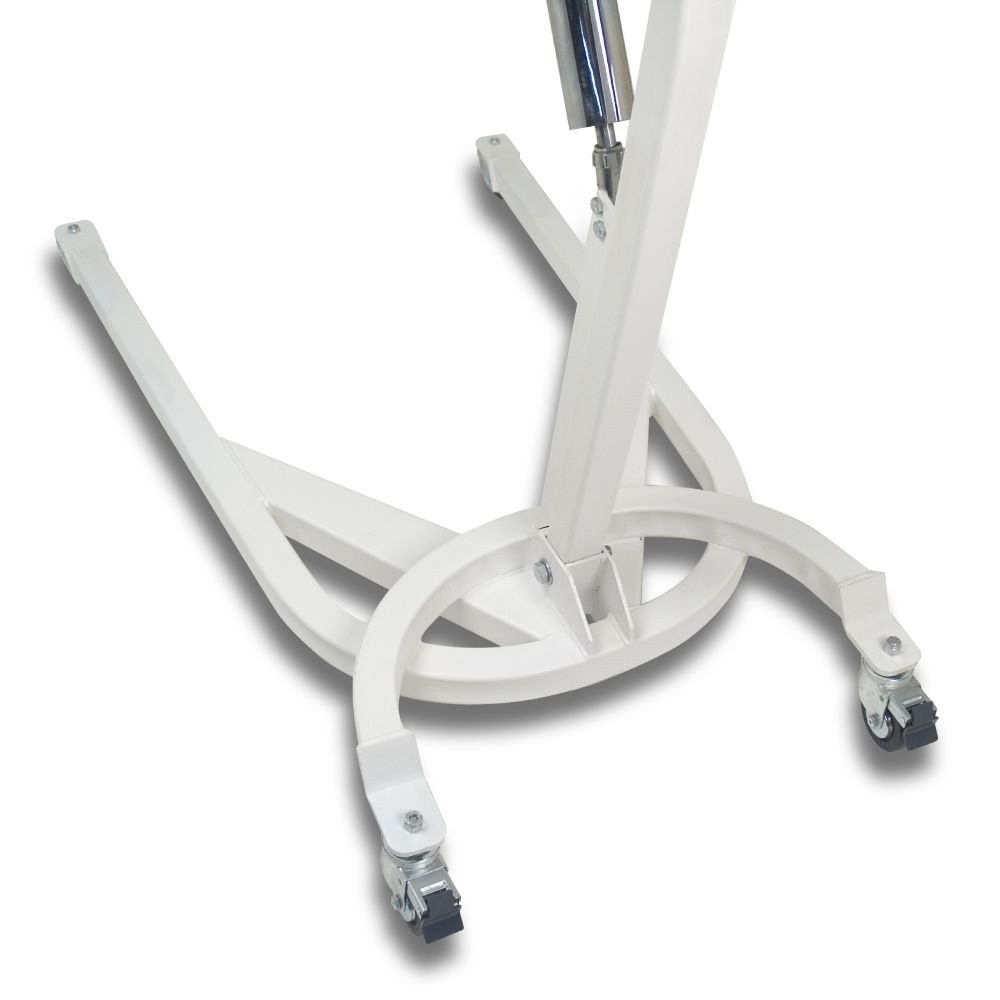

Base: Fixed
Door Width Clearance: 36 in / 91 cm
Shipping Weight: 207 lb / 94 kg
Under Bed Clearance: 4.8 in / 12 cm
Stretcher: 72 in / 180 cm Sure-Check 44XL fabric
Lift Mechanism: Hydraulic
Power: 6 AA batteries (not included) or optional AC adapter

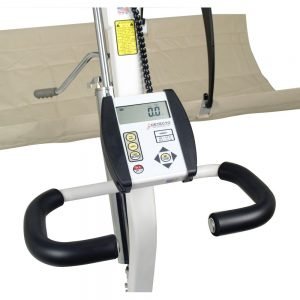

Display: 0.7 in / 19 mm high LCD, 6 digit, 7 segment
Keyboard: Membrane type with 5 keys and 4 navigational arrow keys
Connectivity: RS232 serial port


  • .75-in-high LCD
  • 500 lb/225 kg Capacity
  • EMR/EHR Ready
  • Fits Through 36 in/91 cm Doorways
  • Hydraulic Lift Mechanism
  • Sturdy Steel Construction


IBFL500 IB800 In-Bed Scale Bulletin

Bulletin for DETECTO’s IN-BED Scales featuring a hydraulic lift and adjustable base (IB800) or fixed base (IBFL500).
