Specifications
Models: APEX-RI, APEX-RI-AC (Includes AC Adapter), APEX-RI-C (Includes Bluetooth/Wi-Fi), and APEX-RI-C-AC (Includes Bluetooth/Wi-Fi and AC Adapter)
Capacity: 600 lb x 0.2 lb / 300 kg x 0.1 kg (lb or kg selected upon initialization at start-up)
Platform Size: 17 in W x 17 in D x 2.75 in H / 43 cm W x 43 cm D x 7 cm H
Weighing/Height Units: Pounds/Inch (lb, in) or Kilograms/Centimeters (kg, cm)
Power: 12 AA cell Alkaline, Ni-Cad or NiMH batteries (not included) or optional 100-240 VAC 50/60Hz 12 VDC 1A wall plug-in UL/CSA listed AC power adapter (DETECTO part number 6800-1047 with multi-pin-input, snap-in choices for US, UK, EU, Australia, and Japan)
Ports: 1 RS232 serial port and 1 micro USB-B port
Device Connectivity: HL7 IEEE 11073 compliant (standard); Wi-Fi and Bluetooth BLE models also available for wireless mobile apps (protocol available upon request)
Keypad: Mechanical switch type with 6 buttons (Power, Lock/Release, Zero, BMI/Enter, Up Arrow, Down Arrow)
Cable Length: 6 ft / 1.8 m (from scale base to indicator)

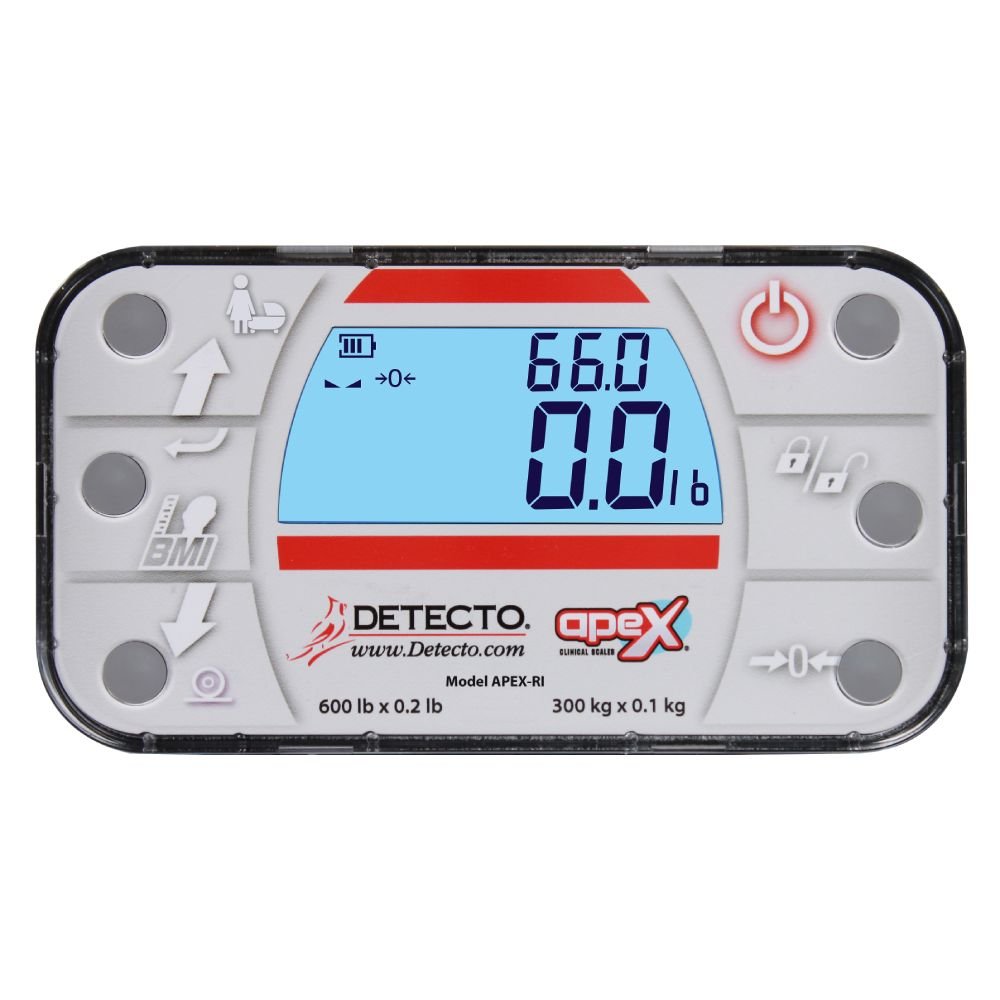

Display Type: Dual-row, seven-segment, clinical-blue LCD
Number of Characters: Weight: 5 digit, 0.75 in (19 mm) high / Height/BMI: 4 digit, 0.4 in (10 mm) high
Operating Environment: Operating Temperature Range: 14 to 104 ºF (-10 to +40 ºC) / Humidity: 0 to 90% non-condensing
Digital Filtering: StableSENSE® adjustable filtering
Country of Origin: USA
Net Weight: 25 lb / 11 kg
Shipping Weight: 28 lb / 13 kg
UPC Code (APEX-RI): 809161304107
UPC Code (APEX-RI-AC): 809161304206
UPC Code (APEX-RI-C): 809161322408
UPC Code (APEX-RI-C-AC): 809161322507
Brand Name: DETECTO apex® series
No Assembly Required: Ready to use right out of the box

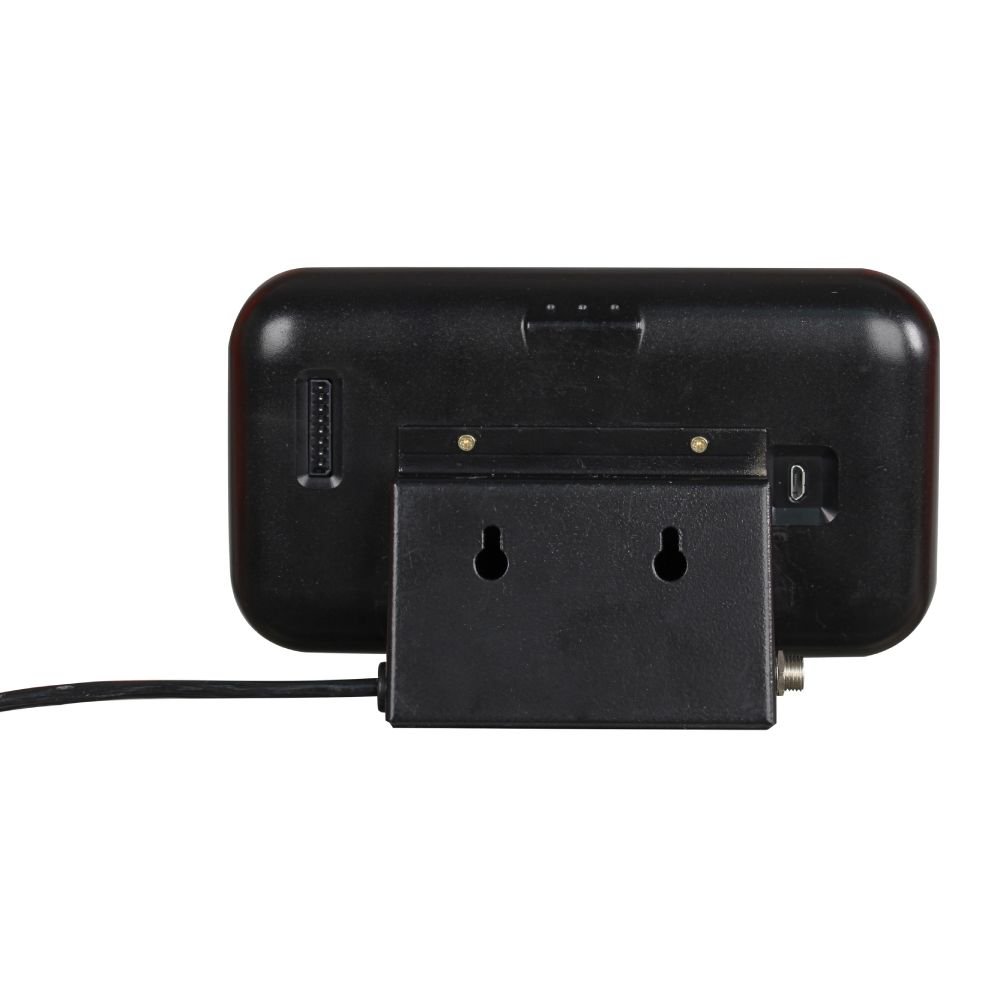

Indicator Bracket: Includes versatile wall-mount or desktop mounting bracket on back of weight indicator
Shipping Dimensions: 19 in x 18 in x 6 in / 48 cm x 46 cm x 15 cm
